Dynamic DR (Dynamic Digital Radiography) has been more and more widely used in the field of medical imaging.

Today's Dynamic DR has surpassed the traditional static DR and become a new round of advanced equipment.

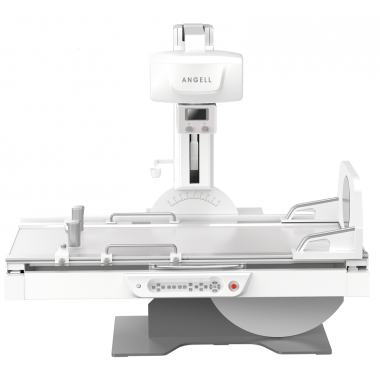

The Dynamic Bed Type DR is the fourth-generation bed-type dynamic flat panel detector DR newly designed by Angell Technology, which is specially designed for the multifunctional diagnostic applications of medical institutions.

In a real sense, the digital radiography system and the fluoroscopy system are integrated, which breaks through the limitations of the single gastrointestinal system application of the traditional system.

It has multiple functions with comprehensive clinical application value.

Multifunctional special structure design:

The tube supports shooting angles from -35° to 35° to meet various angles requirements. Such as calcaneal axis, patella axis, etc.

SID supports 1m to 1.8m to meet the needs of various radiographic distances, such as pneumoconiosis.

Ultra-low bed height design:

727mm industry-leading multifunctional diagnostic bed design, patients can easily get on and off the bed.

360° rotating pedal design:

Support doctors to remotely control the patient's rotation during dynamic observation, especially for the elderly, double the examination efficiency, which can greatly ease the communication pressure of doctors.

Integrated control console design:

The integrated design control console supports the system's one-key switch, supports the doctor's two-handed collaborative control, and cooperates with intuitive and fast function buttons to greatly improve the inspection efficiency.

Removable filter grid design:

Supports the removal of the filter grid during gynecological and pediatric department examinations, which can effectively meet the low dose requirements for gynecological and pediatric X-ray examinations.

Mobile remote control console design:

A lifting integrated bedside mobile console supports doctor for bedside control, exposure, observation and auxiliary treatment, while taking into account the operation comfort of doctors of different heights.

Smart collimator:

The collimator can be adjusted intelligently, and the irradiation field is automatically set according to different parts, which greatly improves the image quality and reduces the dose.

Smart one-key positioning:

Supports one-key high-speed switching between standing chest position and lying position examination, and the whole machine linkage in the switching process.

Compared with the traditional control of multiple motions, the efficiency of the model is more than doubled, which solves the problem of low efficiency of changing patient's clinical positions of the doctor.

Full body image stitching function:

It is standard in the Multifunctional Dynamic Bed Type DR series.

It can assist orthopedic treatment and rehabilitation examination of spinal deformities.

It can provide more comprehensive information for the development of hip replacement surgery plans.

Intelligent full body image stitching function (standard) design

• Intelligent dose control (IDC) function design

• iEAE Intelligent high efficiency automatic enhancement function design

• iGCR intelligent Grayscale Compensation of ROI

• iTE intelligent Tissue Equalization

• iCED intelligent Context Enhancing Denoise

• iMR intelligent Metal Recognition

• iDG intelligent Dose Control

• Professional pneumoconiosis software

Multifunctional Dynamic Bed Type DR series' special design has truly realized the application of the whole department.

• Applied to the Radiology Department: Multifunctional special structure design, can carry out X-ray examination and radiography of complex body position: calcaneus axis position, patella axis position, double oblique position of cervical spine, etc.

• Applied to the Medical Examination Department: The SID standard can reach 1.8 meters, which meets the professional pneumoconiosis examination of the medical examination department.

• Applied to the Gastroenterology Department: 17×17 high-definition dynamic flat panel detector, large field observation makes the diagnosis of various types of contrast examinations such as gastrointestinal examination more accurate.

• Applied to the Orthopedics Department: The full-length spine image stitching and the full-length image stitching of both lower limbs can provide an important diagnostic basis for orthodontic surgery.

• Applied to the Gynecology and Pediatrics Department: Supporting the removal of grid during gynecological pediatric examinations can effectively meet the low-dose requirements for gynecological pediatric X-ray examinations.

Angell Technology adheres to the concept of being responsible to users. The products developed must be tested repeatedly. They are very mature and stable before launched on the market. Instead of assembling products, we strive to develop independently. All components are completely designed and produced independently to achieve localization. The quality of the whole process is effectively guaranteed, so hospitals can be assured of buying. All accessories are independently produced by Angell, which guarantees long-term low cost, convenient and quick service, and allows users to rest assured. Angell Technology is a company that can be trusted by users, and products can make users feel at ease.

We sincerely look forward to it! Shenzhen Angell Technology Co., Ltd. can have the opportunity to serve you.
