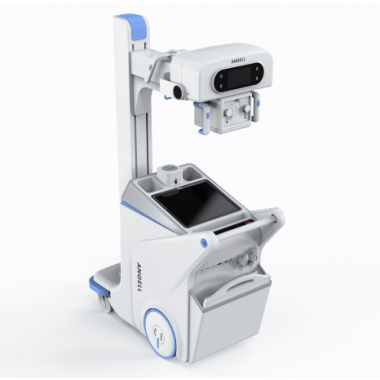

Swallow Series Mobile DR System

Following the successful development of the X-ray digital flat panel detector, Angell Technology developed the 2nd generation of new digital mobile DR system "Swallow".

Swallow is equipped with 14" X 17" and wireless FPD.

With high performance of machine operating, it can offer convenience to  immediate and remote diagnosis of moderate and severe patients, orthopedics patients, pediatric ICU, and infectious patients (isolation area) after radiography.

The mobile digital X-ray radiograph system is flexible in motion, easy to operate, and high efficiency.

It is a veritable DR imaging system suitable for radiology departments, medical examination centers and bedsides. It can work everywhere in the hospital where radiography is required, and immediately displays high-resolution images.

Clinical Application

Pioneering industry green low-dose mobile radiography

Angell Technology independently developed wireless flat panel detectors, innovative use of thickened CSI coating, combined with low-dose radiography control mode, greatly reducing dose, the image is still high definition and sharp.

580mm ultra-narrow body width

Smart move

The ultra-narrow 580mm body design in the industry can freely travel through narrow spaces, making the movement more dexterous. In areas with tight bed spaces, such as the ICU and emergency wards, you can easily take radiography through the narrow gap between beds.

Electric power assist, can be pushed with one hand

Tiny body, induction type electric power assist system, so that female technician can also control equipment movement with one hand.

Flexible movement Smooth driving

The large-diameter main wheel is designed to run linearly and smoothly.

With the help of powerful electric power, it can easily cross a slope section of about 10° and easily reach the clinical diagnosis site quickly.

32KW Generator

300KHU Anode Heat Capacity

Super endurance, easy to deal with continuous radiography

Equipped with high 300KHU anode heat capacity tube, 32KW high power generator. X-ray quality is stable and efficient, comparable to fixed DR. It can support long-term and large-scale check examination.

Intelligent power management, can enter the battery sleep mode when standby. Reduce the power consumption of standby, the ultra-long standby mode can stand by at any time.

Wireless voice visualization exposure operation

Safe design for ICU, isolation ward, etc.

Swallow is equipped with a high-definition camera and voice system on the collimator, which supports long-distance visual operation and voice guidance positioning, effectively protecting technicians and other patients from harm.

The software interface can dynamically monitor the patient's posture changes and body status, and preview the exposure results in real time. For the elderly patients and critically ill patients, it plays a real-time monitoring role.

Laser intelligent ranging SID Large screen display

Save time and effort, reduce residence

Swallow is equipped with a laser distance meter displaying SID in real time under the collimator, which can accurately display 1-1.8m SID in real time.

The screen on tube can display the change of SID in real time. It can quickly position the patients with acute and severe illnesses, saving unnecessary time and ensuring accurate examination quality.

Wireless + wired double exposure solution

Wireless transmission, images are instantly available

It supports two exposure modes: software-defined delay exposure and long-distance extension line exposure. Remote control and safe exposure greatly reduce the radiation risk to technicians.

Equipped with a 19-inch touch-screen, integrated independent R&D image workstation, full control of radiography information, and greatly optimize the mobile radiography workflow in actual operation, eliminating unnecessary steps.

315 ° Ultra-wide range of tube angle motion support

One key to unlock, 315 ° ultra-wide-angle rack movement.

Positioning beside the bed in a complex ward is more precise and convenient.

3.5lp/mm Large spatial resolution wireless FPD to ensure ultra-clear images

Equipped with the industry's largest 3.5lp/mm spatial resolution wireless FPD, which clearly presents the details of the radiography site organization and achieves accurate clinical diagnosis.

The wireless FPD has IP4X waterproof function, easy to disinfect and clean.

Swallow Clinic Images

Mobile DR and mobile CR, conventional DR

Comparison of advantages and disadvantages
